XIAO SEEED ESP32S3 usb mode change

Development Platforms
1

I am working on a macropad project and I want to use usb otg mode. When I compile/upload the code in arduino, it runs as expected, I can see the serial logs and I can detect the usb device. However when I try to set the usb-mode in platformIO it does not work. Here is a minimum working example:

#include <Adafruit_TinyUSB.h>

uint8_t const desc_hid_report[] = {
  0x05, 0x01,       // USAGE_PAGE (Generic Desktop)
  0x09, 0x05,       // USAGE (Game Pad)
  0xA1, 0x01,       // COLLECTION (Application)

  // 16 Buttons
  0x05, 0x09,       //   USAGE_PAGE (Button)
  0x19, 0x01,       //   USAGE_MINIMUM (Button 1)
  0x29, 0x10,       //   USAGE_MAXIMUM (Button 16)
  0x15, 0x00,       //   LOGICAL_MINIMUM (0)
  0x25, 0x01,       //   LOGICAL_MAXIMUM (1)
  0x95, 0x10,       //   REPORT_COUNT (16)
  0x75, 0x01,       //   REPORT_SIZE (1)
  0x81, 0x02,       //   INPUT (Data,Var,Abs)

  0xC0              // END_COLLECTION
};

// Create USB HID instance
Adafruit_USBD_HID usb_hid(desc_hid_report, sizeof(desc_hid_report),
                          HID_ITF_PROTOCOL_NONE, 2, false);

typedef struct {
  uint16_t buttons;  // 16 buttons
} __attribute__((packed)) gamepad_report_t;

gamepad_report_t gp = {0};

void setup() {
  Serial.begin(115200);

  TinyUSBDevice.setManufacturerDescriptor("Des");
  TinyUSBDevice.setProductDescriptor("ESP32-S3 Macropad");
  TinyUSBDevice.setID(0xCafe, 0x4001);

  if (!TinyUSBDevice.isInitialized()) {
    TinyUSBDevice.begin(0);
  }

  usb_hid.begin();

  // Force re-enumeration
  if (TinyUSBDevice.mounted()) {
    TinyUSBDevice.detach();
    delay(10);
    TinyUSBDevice.attach();
  }

  Serial.println("Button-only Gamepad ready!");
}

void loop() {
  // Press button 1
  gp.buttons = 0x0001;
  usb_hid.sendReport(0, &gp, sizeof(gp));
  delay(5000);

  // Release all buttons
  gp.buttons = 0x0000;
  usb_hid.sendReport(0, &gp, sizeof(gp));
  delay(5000);
}

The platform.ini file as follows:

[env:seeed_xiao_esp32s3]
platform = espressif32
board = seeed_xiao_esp32s3
framework = arduino
lib_deps:
    mathertel/RotaryEncoder@^1.5.3
    adafruit/Adafruit TinyUSB Library@^3.7.2

I tried to set build_flags for usb mode, but that did not change anything.
Any help would be appriciated!

2

Works fine with

[env:seeed_xiao_esp32s3]
platform = https://github.com/pioarduino/platform-espressif32/releases/download/55.03.31/platform-espressif32.zip
board = seeed_xiao_esp32s3
framework = arduino
lib_deps =
    adafruit/Adafruit TinyUSB Library@^3.7.2
build_flags =
  -DARDUINO_USB_MODE=0 ; USB-OTG (TinyUSB)
; undefine default Hardware CDC / JTAG mode
build_unflags = -DARDUINO_USB_MODE=1

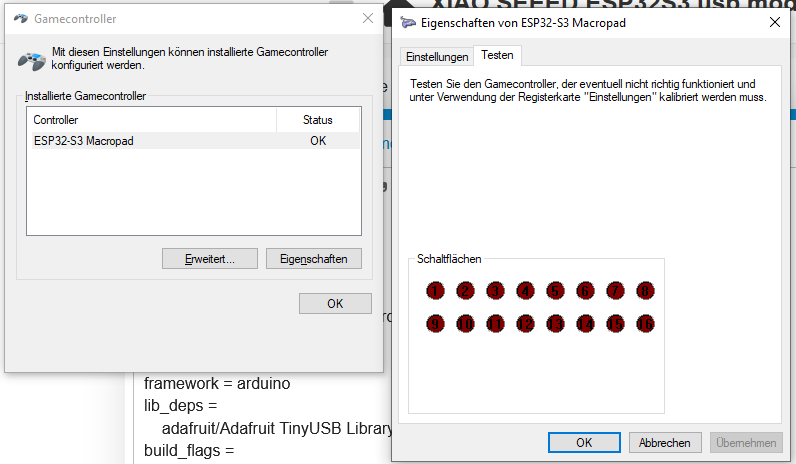

grafik

grafik
grafik796×464 20.9 KB

3

Thanks this worked, if I tried with simply espressif32 I got an error if I tried to set DARDUINO_USB_MODE=0, but with the platform you provided it has no problem.

4

That’s the magic line. You need this because the default is 1 but you want 0.
