Platformio STM32 and FreeRtos Library

gchatzisavvidis · November 26, 2024, 3:56pm

Hi,

Long story Short , i want to add a V1 FreeRtos Library into my STM32L4 project, but i hit walls again and again!

main.c:(.text.startup.main+0x18): undefined reference to `osThreadCreate’

this is my paltformio.ini

[env:nucleo_l476rg]
platform = ststm32
board = nucleo_l476rg
framework = stm32cube
upload_protocol = custom
upload_command = openocd -f interface/stlink.cfg -f target/stm32l4x.cfg -c “init; reset halt; stm32l4x mass_erase 0; program {$SOURCE} 0x08000000 verify reset exit”
debug_tool = stlink
debug_init_break = tbreak main
lib_deps = FreeRTOS ;makes no diff

build_flags =
-IMiddlewares/Third_Party/FreeRTOS/Source/CMSIS_RTOS
-IMiddlewares/Third_Party/FreeRTOS/Source/portable/GCC/ARM_CM4F
-IMiddlewares/Third_Party/FreeRTOS/Source/include

;src_filter = <Middlewares/Third_Party/FreeRTOS/Source/> not working

; select linker file generated by CubeMX
;board_build.ldscript = STM32L476RGTx_FLASH.ld not working

this is my main

#include “cmsis_os.h”
#include “FreeRTOS.h”
#include “task.h”
#include “stm32l4xx_hal.h”

osThreadId MYTaskHandle;
osThreadId MainProcesTaskHandle;
void MYTask()
{

//DO nothing
}
int main(void)
{
osThreadDef(MYT, MYTask, osPriorityNormal, 0, 512);
MYTaskHandle = osThreadCreate(osThread(MYT), NULL);
}

the error
.pio/build/nucleo_l476rg/src/main.o: In function main': main.c:(.text.startup.main+0x18): undefined reference to osThreadCreate’
collect2.exe: error: ld returned 1 exit status
*** [.pio\build\nucleo_l476rg\firmware.elf] Error 1

here is the test project i am refering https://file.io/SdgvwXMpXG7a i dont understand what is the problem of paltformio and cannot include the dirs , with other IDE i just include the folders and thats it , Please Help!

maxgerhardt · November 26, 2024, 6:55pm

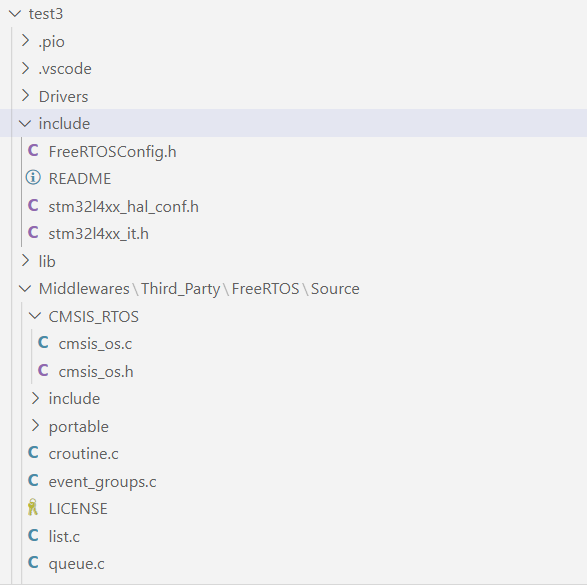

This will only add those paths to the header search path of GCC, as is documented. It won’t actually build a single file in those folders, since the file is not inside the dedicated source directory (by default: src/) or a library (by default: a folder inside lib/).

You need to move those files to one of the aforementioned places if you want them to be included in the build.

gchatzisavvidis · November 26, 2024, 7:08pm

UPDATE , i used a reference project

pio-stm32h7-stm32cube-freertos/reference_stm32cube_project at main · maxgerhardt/pio-stm32h7-stm32cube-freertos

this is using however a stm32h7 , i ported my MCU STM32L4
everything is perfect
platformio.ini

[env:nucleo_l476rg]
platform = ststm32
board = nucleo_l476rg
framework = stm32cube
upload_protocol = custom
upload_command = openocd -f interface/stlink.cfg -f target/stm32l4x.cfg -c “init; reset halt; stm32l4x mass_erase 0; program {$SOURCE} 0x08000000 verify reset exit”
debug_tool = stlink

debug_init_break = tbreak main

; select linker file generated by CubeMX
board_build.ldscript = STM32L476RGTx_FLASH.ld
; make build system use our HAL config file
board_build.stm32cube.custom_config_header = yes
; force inclusion of lib/FreeRTOS
;lib_deps = FreeRTOS
; needed compiler flags to
; correctly build the port assembly files
; and add freertos subfolders to include path
build_flags =
-mcpu=cortex-m4
-mfloat-abi=hard
-mfpu=fpv4-sp-d16
-Ilib/FreeRTOS/include
-Ilib/FreeRTOS/CMSIS_RTOS_V2
-Ilib/FreeRTOS/portable/GCC/ARM_CM4F
-Iinclude
; link FreeRTOS as objectf files, not as
; archives. otherwise weak ISR functions
; don’t get linked properly!
lib_archive = no

and when i build i get a bunch odf errror s
something to do woth Floating Point Unit (FPU) settings

I assume this is a problem with STM32L4

c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_adc.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_adc.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_adc_ex.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_adc_ex.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_can.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_can.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_comp.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_comp.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_cortex.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_cortex.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_crc.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_crc.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_crc_ex.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_crc_ex.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_cryp.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: failed to merge target specific data of file .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_cryp.o
c:/users/gchat/.platformio/packages/toolchain-gccarmnoneeabi/bin/…/lib/gcc/arm-none-eabi/7.2.1/…/…/…/…/arm-none-eabi/bin/ld.exe: error: .pio/build/nucleo_l476rg/FrameworkHALDriver/Src/stm32l4xx_hal_cryp_ex.o uses VFP register arguments, .pio/build/nucleo_l476rg/firmware.elf does not

maxgerhardt · November 26, 2024, 7:19pm

Can you post your project now?

gchatzisavvidis · November 27, 2024, 5:41am

Ok this is my new attempt to fix it
https://file.io/Eby2XHaXD7VN

i believe is imposibble , and is a kinda bug of platformio or something

maxgerhardt · November 27, 2024, 9:31am

There is no bug. Only configuration issues in the project.

Move the “MiddleWares” folder inside src/ or the files will not be built
Adapt the paths in the build_flags accordingly

build_flags =
  -Isrc/Middlewares/Third_Party/FreeRTOS/Source/CMSIS_RTOS
  -Isrc/Middlewares/Third_Party/FreeRTOS/Source/portable/GCC/ARM_CM4F
  -Isrc/Middlewares/Third_Party/FreeRTOS/Source/include

Add an extra_script to properly add the hard-floating point usage into the C/C++ compiler flags, linker flags, and assembler flags by setting

extra_scripts = pre:hardfloat.py

then creating the file hardfloat.py in the same folder as the platformio.ini with content

Import("env")
env.Append(
    LINKFLAGS=["-mfloat-abi=hard", "-mfpu=fpv4-sp-d16"],
    CCFLAGS=["-mfloat-abi=hard", "-mfpu=fpv4-sp-d16"],
    ASFLAGS=["-mfloat-abi=hard", "-mfpu=fpv4-sp-d16"]
)

Hit “Build”

Indexing .pio/build/nucleo_l476rg/libFrameworkCMSISDevice.a
Linking .pio/build/nucleo_l476rg/firmware.elf
Checking size .pio/build/nucleo_l476rg/firmware.elf
Advanced Memory Usage is available via "PlatformIO Home > Project Inspect"
RAM:   [          ]   4.4% (used 4344 bytes from 98304 bytes)
Flash: [          ]   0.3% (used 2692 bytes from 1048576 bytes)
Building .pio/build/nucleo_l476rg/firmware.bin
=====================[SUCCESS] Took 3.57 seconds =====================

gchatzisavvidis · November 27, 2024, 12:50pm

Oh Hell Nah!!!
Thanks! let me test and i will let you know
