Hi!
I bought a development board with a built-in screen ESP32-S3-LCD-1.28 from this link https://www.aliexpress.us/item/1005006754030454.html?spm=a2g0o.order_list.order_list_main.20.3bf41c24AWBO9i&gatewayAdapt=4itemAdapt
I’m trying using PlatformIO display something on the screen but it doesn’t working. This is my code:
main.cpp
#include <Arduino.h>
#include <TFT_eSPI.h>
TFT_eSPI tft = TFT_eSPI();
void setup() {
tft.init();
tft.setRotation(1);
tft.fillScreen(TFT_WHITE);
tft.setTextFont(4);
}
void loop() {
tft.fillScreen(TFT_WHITE);
tft.fillRectHGradient(0, 0, 160, 50, TFT_MAGENTA, TFT_BLUE);
tft.setCursor(10, 10);
tft.print("test");
delay(100);
}
platformio.ini
[env:esp32-s3-devkitc-1]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_opi
board_build.flash_mode = qio
board_build.psram_type = opi
board_upload.flash_size = 4MB
board_upload.maximum_size = 4194304
board_build.partitions = default.csv
board_build.extra_flags =
-DBOARD_HAS_PSRAM
lib_deps = bodmer/TFT_eSPI@^2.5.43
After run that i see only black screen. I learn this board from this https://www.youtube.com/watch?v=GosqWcScwC0
All of this seems wrong when the official reference says 16 MByte of QIO Flash and QSPI PSRAM. You’re setting it for 4MB QIO Flash and OPI PSRAM.
This should be
board_build.arduino.memory_type = qio_qspi
board_build.flash_mode = qio
board_build.psram_type = qspi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
Where do you configure the TFT_eSPI library for your display? Just including the library is not enough. You have to setup all the defines or an include file for the display.
The official Wiki for the board (no touch version) at
https://www.waveshare.com/wiki/ESP32-S3-LCD-1.28#Install_library
provides a modified TFT_eSPI version at https://files.waveshare.com/wiki/ESP32-S3-LCD-1.28/ESP32-S3-LCD-1.28-Demo.zip which has the necessary library and files
So if you just want a very easy way to that premade library:
Delete the lib_deps
expression from your platformio.ini
Delete the .pio
folder of your project

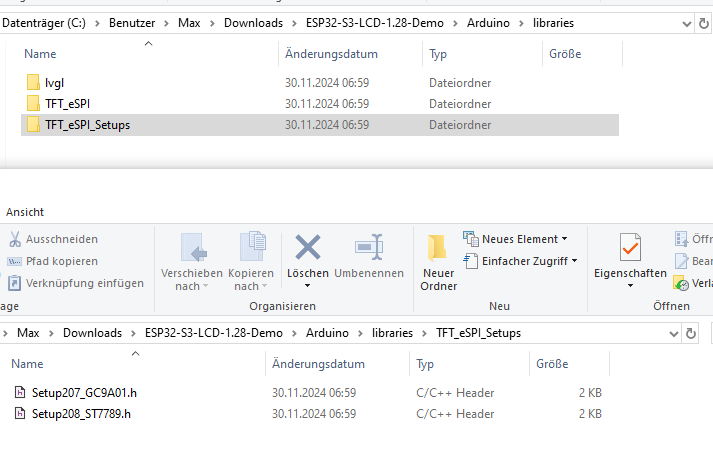

Copy in the downloaded TFT_eSPI
folder into lib/TFT_eSPI
Copy in the downloaded TFT_eSPI_Setups
folder into lib/TFT_eSPI_Setups
Build again
Ok, thank you. I changed my platformio.ini file and i have this content:
[env:esp32-s3-devkitc-1]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_qspi
board_build.flash_mode = qio
board_build.psram_type = qspi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
board_build.extra_flags =
-DBOARD_HAS_PSRAM
My main.cpp file:
#include <TFT_eSPI.h>
#include <SPI.h>
TFT_eSPI tft = TFT_eSPI();
void setup() {
Serial.begin(115200);
tft.init();
tft.setRotation(1);
tft.fillScreen(TFT_WHITE);
tft.setTextFont(4);
}
void loop() {
tft.fillScreen(TFT_WHITE);
tft.fillRectHGradient(0, 0, 160, 50, TFT_MAGENTA, TFT_BLUE);
tft.setCursor(10, 10);
tft.print("test");
}

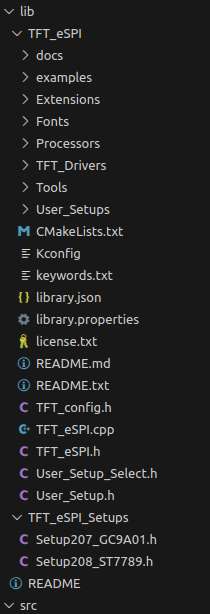

And my lib directory content:
I tried include #include <Setup207_GC9A01.h>
or #include <Setup208_ST7789.h>
file but still doesn’t working
The Setup208_ST7789.h
seems to be for ESP32-S3-Touch-LCD-1.69
, not ESP32-S3-Touch-LCD-1.28
like the Setup207_GC9A01.h
file says.
Does basic blinky and serial work at all? The chip might not be booting with wrong flash / psram configuration.
#include <Arduino.h>
#define LED 40 /* LCD backlight as LED.. */
void setup() {
Serial.begin(115200);
pinMode(LED, OUTPUT);
}
void loop() {
digitalWrite(LED, LOW);
delay(1000);
digitalWrite(LED, HIGH);
delay(1000);
Serial.println("Blinky!");
}
with a platformio.ini
of
[env:esp32-s3-devkitc-1]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_qspi
board_build.flash_mode = qio
board_build.psram_type = qspi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
board_build.extra_flags =
-DBOARD_HAS_PSRAM
monitor_speed = 115200
Full screen blink and I have Blinky!
message in serial monitor
Okay.
I just noticed a slew of redefinition warnings when I compile a test firmware.
Can you go into lib/TFT_eSPI/USer_Setup_select.h
and comment out line 27? Then these warnings should go away.
Within the same platformio.ini
as in the previous post, can you use this code
#include <Arduino.h>
#include <TFT_eSPI.h>
TFT_eSPI tft = TFT_eSPI();
#if defined(ILI9341_DRIVER)
#error "Wrong screen type defiend (ILI9341)"
#endif
#if defined(GC9A01_DRIVER)
#warning "Right screen type defiend"
#endif
void setup() {
delay(2000); // give serial monitor time to startup
Serial.begin(115200);
Serial.println("Firmware start");
tft.init();
Serial.println("TFT init done");
tft.setRotation(1);
tft.fillScreen(TFT_WHITE);
tft.setTextFont(4);
Serial.println("Set done");
}
void loop() {
Serial.println("loop");
tft.fillScreen(TFT_WHITE);
tft.fillRectHGradient(0, 0, 160, 50, TFT_MAGENTA, TFT_BLUE);
tft.setCursor(10, 10);
tft.print("test");
delay(1000);
}
During build, hopefully this message should appear
src/main.cpp:11:2: warning: #warning "Right screen type defiend" [-Wcpp]
11 | #warning "Right screen type defiend"
| ^~~~~~~
confirming the right screen type. What’s the seiral output?
yyy now after upload i see something like this:
ELF file SHA256: aabd2728d
Rebooting...
ESP-ROM:esp32s3-20210327
Build:Mar 27 2021
rst:0xc (RTC_SW_CPU_RST),boot:0x38 (SPI_FAST_FLASH_BOOT)
Saved PC:0x4037984e
SPIWP:0xee
mode:DIO, clock div:1
load:0x3fce2820,len:0x1188
load:0x403c8700,len:0x4
load:0x403c8704,len:0xbf0
load:0x403cb700,len:0x30e4
entry 0x403c88ac
Firmware start
Guru Meditation Error: Core 1 panic'ed (StoreProhibited). Exception was unhandled.
Core 1 register dump:
PC : 0x42003167 PS : 0x00060530 A0 : 0x82003240 A1 : 0x3fca2ef0
A2 : 0x3fc97d38 A3 : 0x00000000 A4 : 0x0000000b A5 : 0x0000000b
A6 : 0x000000ff A7 : 0x60004000 A8 : 0x00000010 A9 : 0x08000000
A10 : 0x3fc997cc A11 : 0x04c4b400 A12 : 0x00000001 A13 : 0x00000000
A14 : 0x00001000 A15 : 0x04c4b400 SAR : 0x0000000c EXCCAUSE: 0x0000001d
EXCVADDR: 0x00000010 LBEG : 0x4201be14 LEND : 0x4201be21 LCOUNT : 0x00000000
Backtrace: 0x42003164:0x3fca2ef0 0x4200323d:0x3fca2f20 0x4200203b:0x3fca2f40 0x42006ec6:0x3fca2f70 0x4037cc72:0x3fca2f90
But when i compile i see:
Compiling .pio/build/esp32-s3-devkitc-1/liba86/SPI/SPI.cpp.o
In file included from src/main.cpp:2:
lib/TFT_eSPI/TFT_eSPI.h:973:8: warning: #warning >>>>------>> TOUCH_CS pin not defined, TFT_eSPI touch functions will not be available! [-Wcpp]
973 | #warning >>>>------>> TOUCH_CS pin not defined, TFT_eSPI touch functions will not be available!
| ^~~~~~~
src/main.cpp:11:2: warning: #warning "Right screen type defiend" [-Wcpp]
11 | #warning "Right screen type defiend"
| ^~~~~~~
Okay, so it’s crashing.
Please add the following to the platformio.ini
:
build_type = debug
monitor_filters =
esp32_exception_decoder
And press “upload and monitor” again. What’s the output?
Also, what is the platform and packages that PlatformIO uses? That’s printed at the beginning of the build output. For me, I’m on (pioarduino) platform 54.3.20 with Arduino-ESP 3.2.0
PLATFORM: Espressif 32 (54.3.20) > Espressif ESP32-S3-DevKitC-1-N8 (8 MB QD, No PSRAM)
HARDWARE: ESP32S3 240MHz, 320KB RAM, 8MB Flash
DEBUG: Current (esp-builtin) On-board (esp-builtin) External (cmsis-dap, esp-bridge, esp-prog, iot-bus-jtag, jlink, minimodule, olimex-arm-usb-ocd, olimex-arm-usb-ocd-h, olimex-arm-usb-tiny-h, olimex-jtag-tiny, tumpa)
PACKAGES:
- framework-arduinoespressif32 @ 3.2.0
- framework-arduinoespressif32-libs @ 5.4.0+sha.2f7dcd862a
- tool-esptoolpy @ 4.8.9
- tool-mklittlefs @ 3.2.0
- tool-riscv32-esp-elf-gdb @ 14.2.0+20240403
- tool-xtensa-esp-elf-gdb @ 14.2.0+20240403
- toolchain-riscv32-esp @ 14.2.0+20241119
- toolchain-xtensa-esp-elf @ 14.2.0+20241119
LDF: Library Dependency Finder -> https://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
Found 43 compatible libraries
Scanning dependencies...
Dependency Graph
|-- TFT_eSPI @ 2.5.34
I have it:
Rebooting...
ESP-ROM:esp32s3-20210327
Build:Mar 27 2021
rst:0xc (RTC_SW_CPU_RST),boot:0x38 (SPI_FAST_FLASH_BOOT)
Saved PC:0x4037984e
#0 0x4037984e in esp_cpu_wait_for_intr at /home/runner/work/esp32-arduino-lib-builder/esp32-arduino-lib-builder/esp-idf/components/esp_hw_support/cpu.c:64
SPIWP:0xee
mode:DIO, clock div:1
load:0x3fce2820,len:0x1188
load:0x403c8700,len:0x4
load:0x403c8704,len:0xbf0
load:0x403cb700,len:0x30e4
entry 0x403c88ac
Firmware start
Guru Meditation Error: Core 1 panic'ed (StoreProhibited). Exception was unhandled.
Core 1 register dump:
PC : 0x42003cdd PS : 0x00060530 A0 : 0x82003ee9 A1 : 0x3fca2ee0
A2 : 0x3fc97d38 A3 : 0x00000000 A4 : 0x0000000b A5 : 0x0000000b
A6 : 0x000000ff A7 : 0x3fc97ee4 A8 : 0x00000010 A9 : 0x08000000
A10 : 0x3fc997cc A11 : 0x04c4b400 A12 : 0x00000001 A13 : 0x00000000
A14 : 0x00001000 A15 : 0x00000031 SAR : 0x0000000c EXCCAUSE: 0x0000001d
EXCVADDR: 0x00000010 LBEG : 0x4201d810 LEND : 0x4201d81d LCOUNT : 0x00000000
Backtrace: 0x42003cda:0x3fca2ee0 0x42003ee6:0x3fca2f10 0x4200204a:0x3fca2f40 0x420087b2:0x3fca2f70 0x4037cc72:0x3fca2f90
#0 0x42003cda in TFT_eSPI::begin_tft_write() at lib/TFT_eSPI/TFT_eSPI.cpp:81
(inlined by) TFT_eSPI::writecommand(unsigned char) at lib/TFT_eSPI/TFT_eSPI.cpp:982
#1 0x42003ee6 in TFT_eSPI::init(unsigned char) at lib/TFT_eSPI/TFT_eSPI.cpp:692
#2 0x4200204a in setup() at src/main.cpp:18
#3 0x420087b2 in loopTask(void*) at /home/kevin/.platformio/packages/framework-arduinoespressif32/cores/esp32/main.cpp:59
#4 0x4037cc72 in vPortTaskWrapper at /home/runner/work/esp32-arduino-lib-builder/esp32-arduino-lib-builder/esp-idf/components/freertos/FreeRTOS-Kernel/portable/xtensa/port.c:139
This is wild. The Espressif macro for “give me the register base for SPI0” just returns a nullpointer (0x0), at i = 0.
#define REG_SPI_BASE(i) (((i)>=2) ? (DR_REG_SPI2_BASE + (i-2) * 0x1000) : (0)) // GPSPI2 and GPSPI3
It’s crashing because it wants to write to 0x00000010
.
I need a moment to look at this.
I done this with commented 27
line in User_Setup_Select.h
file
This seems relevant:
opened 02:45AM - 21 May 24 UTC
The issue that I am encountering is that a "Guru Meditation Error: Core 1 panic… 'ed (StoreProhibited). Exception was unhandled." just prior to executing the tft.init() function. This issue appears to be only graphics bases since I can execute this sketch with only Serial.println("..."); calls. I can use the Adafruit_GFX.h with the Adafruit_ST7789.h driver to do a test on a GFX application.
During an update something changed and I am at a loss to determine the root cause. Wiring is correct ( I have checked it many times).
1. IDE - Arduino version 2.3.2 CLI version 0.35.3
2. TFT_eSPI - version 2.5.43
3. Board Version - esp32 version 3.0.0.rc3 (I have regressed it back to ESP version 2.0.16 with no change in functionality, still reboots).
4. PROCESSOR - ESP32-S3
5. TFT Driver - ST7789 (TFT_eSPI sourced)
6. TFT Interface - SPI
See the following attached files for additional information you require:
[User_Setup.zip](https://github.com/Bodmer/TFT_eSPI/files/15383585/User_Setup.zip)
Sketch:
[WIFI_Channel_List.zip](https://github.com/Bodmer/TFT_eSPI/files/15383589/WIFI_Channel_List.zip)
TFT ; ST7789 IC 1.9 Inch ips Full View TFT Display LCD Color Module SPI Serial Port HD 170x320 MSP430 and C51 Programs
I have only one of these displays....

DEBUG Output:
[Debug Output.zip](https://github.com/Bodmer/TFT_eSPI/files/15383726/Debug.Output.zip)
Plus further information as appropriate to the problem:
1. TFT to processor connections used
2. A zip file containing your setup file (just drag and drop in message window - do not paste in long files!)
3. A zip file containing a simple and complete example sketch that demonstrates the problem but needs no special hardware sensors or libraries.
4. Screen shot pictures showing the setup

Thanks, John Taylor
I can be reached at taylorjw.nc@att.net
Can you please use this exact platformio.ini
and reupload?
[env:esp32-s3-devkitc-1]
platform = espressif32@6.6.0
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_qspi
board_build.flash_mode = qio
board_build.psram_type = qspi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
board_build.extra_flags =
-DBOARD_HAS_PSRAM
monitor_speed = 115200
build_type = debug
monitor_filters =
esp32_exception_decoder
It’s working. Thank you so much. But what was wrong?
Output from serial:
Build:Mar 27 2021
rst:0x1 (POWERON),boot:0x39 (SPI_FAST_FLASH_BOOT)
SPIWP:0xee
mode:DIO, clock div:1
load:0x3fce3808,len:0x44c
load:0x403c9700,len:0xbd8
load:0x403cc700,len:0x2a80
entry 0x403c98d0
Firmware start
TFT init done
Set done
loop
loop
loop
loop
kevin134:
But what was wrong?
At the base, some TFT_eSPI or Espressif code is wrong. I think https://github.com/Bodmer/TFT_eSPI/issues/3329#issuecomment-2808875061 is close to a good explanation.
Arduino cores before 2.0.16 did not define REG_SPI_BASE
, so TFT_eSPI defines it in this case to always DR_REG_SPI2_BASE
as a bugfix. Arduino cores after 2.0.16 do define it to
#define REG_SPI_BASE(i) (((i)>=2) ? (DR_REG_SPI2_BASE + (i-2) * 0x1000) : (0))
which, together with the definition of what’s used for i
is FSPI
and
#define FSPI 0
gives a null pointer (0) instead of DR_REG_SPI2_BASE
. This crashes execution.
So it seems like the definition of FSPI is wrong for ESP32S3 or TFT_eSPI should be using HSPI not FSPI as the SPI_PORT.
We ““fixed”” it by downgrading the platform
in the platformio.ini
to use an older Arduino core, where TFT_eSPI uses the right REG_SPI_BASE value.
Other ports suggest that it should also work on the newer Arduino cores and ESP32S3 if you define the USE_HSPI_PORT
macro to make that happen.
So, if you want another test:
[env:esp32-s3-devkitc-1]
; uses Arduino-ESP32 2.0.17
platform = espressif32@6.11.0
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_qspi
board_build.flash_mode = qio
board_build.psram_type = qspi
board_upload.flash_size = 16MB
board_build.partitions = default_16MB.csv
; PSRAM + bugfix against TFT_eSPI/issues/3329 on newer Arduino cores
board_build.extra_flags =
-DBOARD_HAS_PSRAM
-DUSE_HSPI_PORT
monitor_speed = 115200
build_type = debug
monitor_filters =
esp32_exception_decoder
Long story short the REG_SPI_BASE in IDF is wrong. Submitted a PR and espressif IDF messed the PR up by changing it. In my private fork i have corrected. To make the Bodmer TFT_eSPI (which is outdated BTW.) you have to manually override which SPI is used
