A Qt-based GUI tool for ESP32 that simplifies flashing, key management, and hardware encryption - all in one place.
What is this?
ESP32 Flasher & Encryption Manager is a comprehensive desktop application that simplifies ESP32 programming while providing robust firmware protection through hardware-based flash encryption. It’s designed to make the complex process of secure ESP32 development accessible to everyone - from hobbyists to professionals.
Repository & Download
Key Features
Hardware Flash Encryption Made Easy
The application leverages the ESP32’s built-in hardware encryption engine to protect your intellectual property. No more complex command-line workflows - everything is just a few clicks away.
-
User-Controlled Keys: You generate and control your own encryption keys (not auto-generated)
-
One-Click Setup: Flash encryption with a single button click
-
Visual Status: Real-time display of encryption status

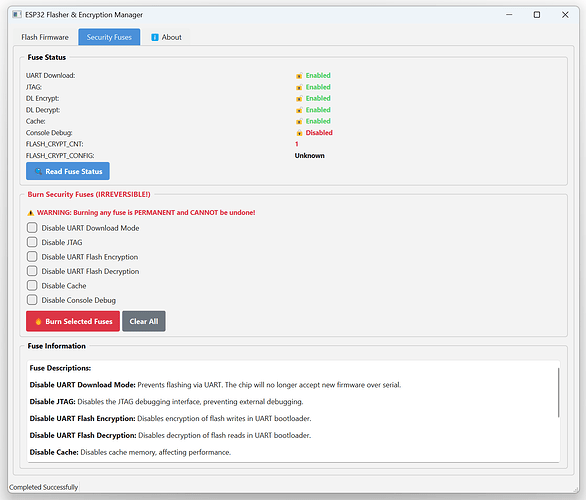

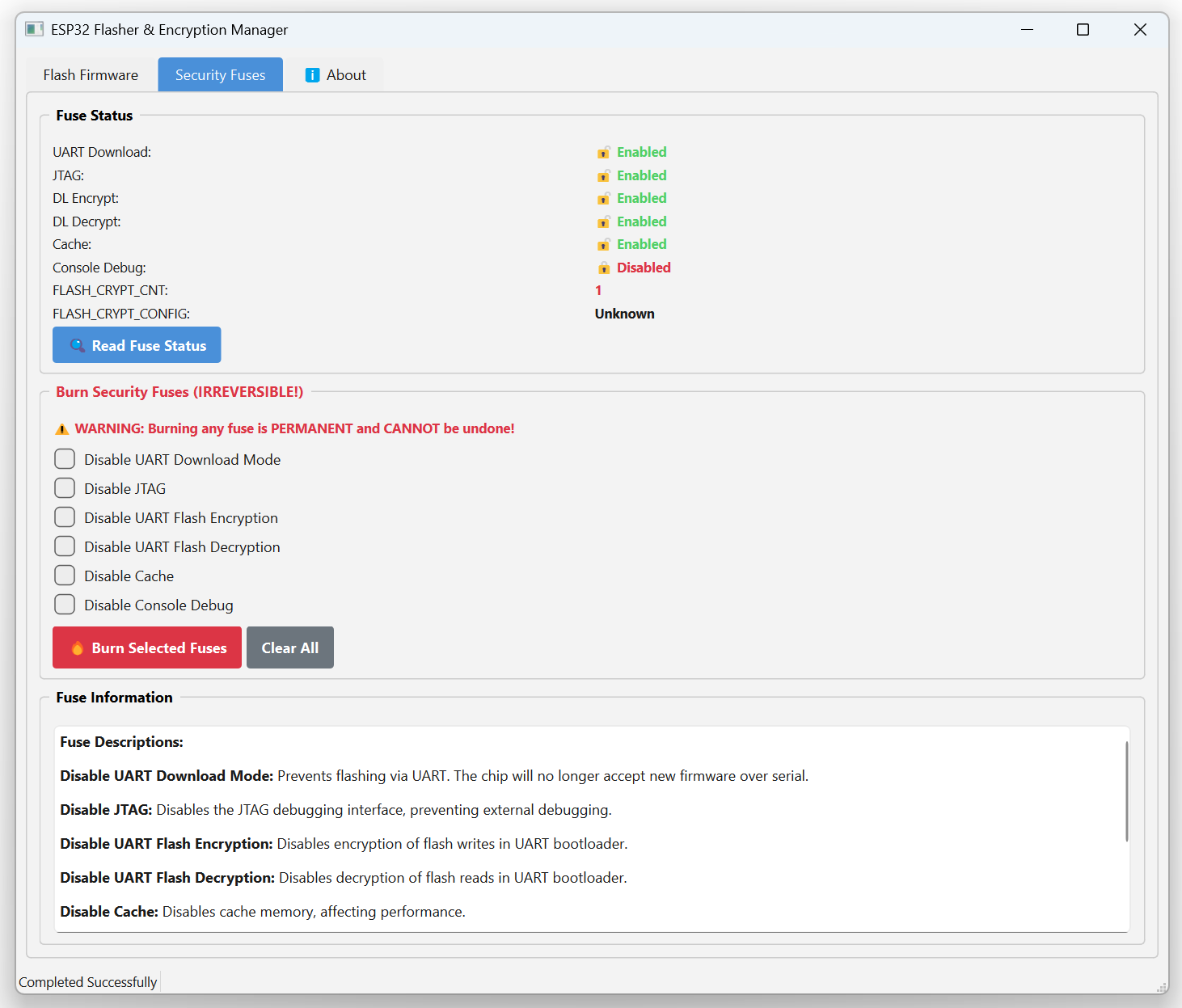

Security Fuse Management
Protect your production devices by permanently disabling debug interfaces:
-
Disable UART Download Mode (prevents unauthorized flashing)
-
Disable JTAG Debugging
-
Disable UART Flash Encryption/Decryption
-
All fuses are one-time programmable (OTP)
Universal Flashing
Flash all ESP32 firmware components in one operation:
-
Bootloader
-
Partition Table
-
Application Firmware
Smart Workflow
The application automatically detects your ESP32’s encryption state:
-
Fresh Chip: Guides you through complete encryption setup
-
Encrypted Chip: Uses hardware encryption for fast, secure updates
-
Status Display: Real-time chip information and encryption status
Screenshots

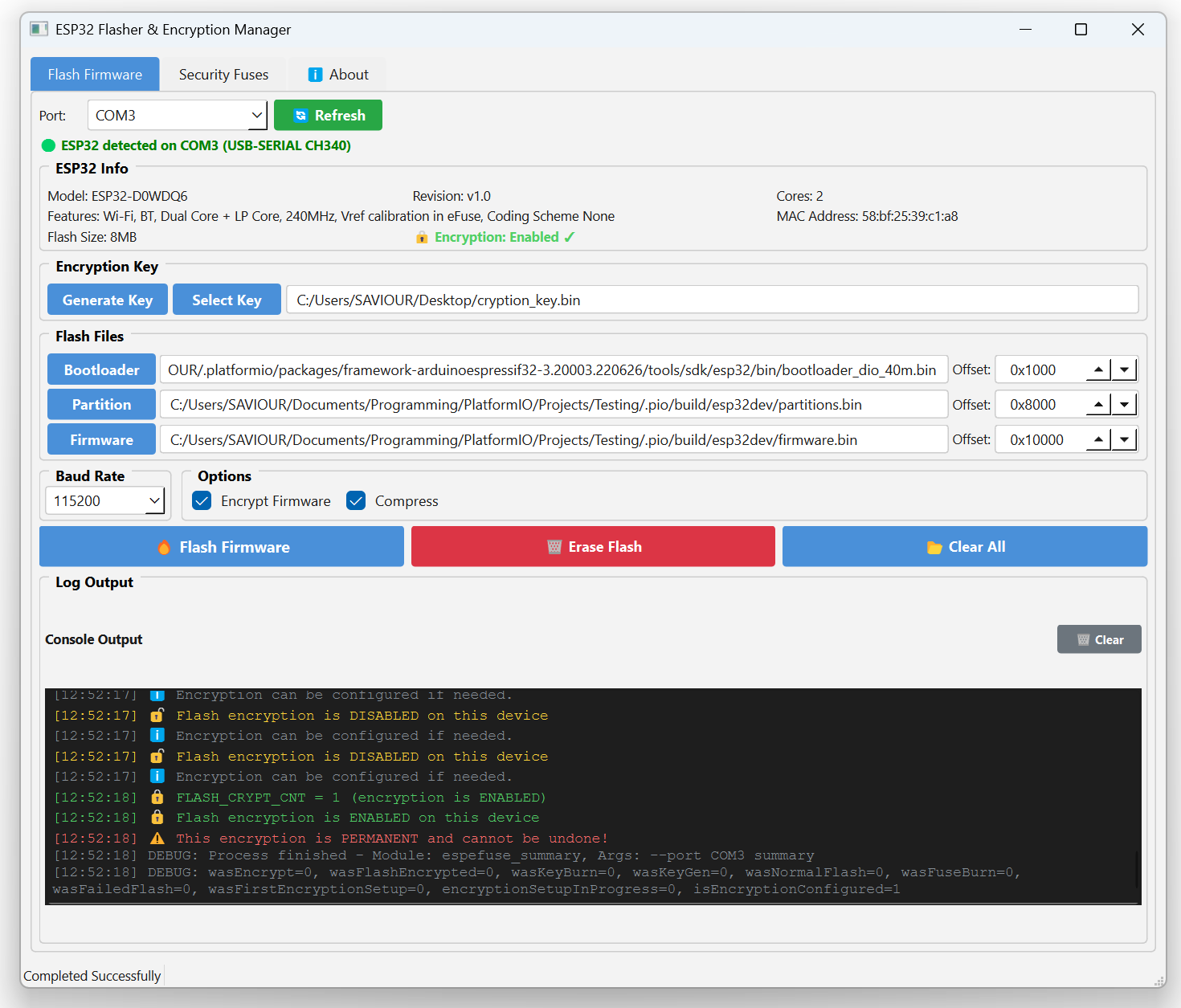

Main Interface
Clean, organized interface with clear sections for flashing, encryption, and status monitoring.
